Symbolic Regression

Initial Research

This is a machine-learning technique for finding equations to fit data. The following wikipage piqued the student’s interest:

https://en.wikipedia.org/wiki/Symbolic_regression

First Toy Dataset

Before we dive into the details, let us build a toy dataset to explain the motivation behind symbolic regression.

API Gravity

Convert specific gravity to API Gravity

\(\gamma_{API}=\frac{141.5}{\gamma_{o}}-131.5\)

Symbol	Meaning	Units
\(\gamma_{API}\)	API Gravity	[degAPI]
\(\gamma_o\)	specific gravity	[1/wtr]

x=np.arange(start=0.55,stop=1.075,step=0.025)
y=141.5/x-131.5
dfa=pd.DataFrame(data={'Specific Gravity':x,'API Gravity':y})
dfa

	Specific Gravity	API Gravity
0	0.550	125.772727
1	0.575	114.586957
2	0.600	104.333333
3	0.625	94.900000
4	0.650	86.192308
5	0.675	78.129630
6	0.700	70.642857
7	0.725	63.672414
8	0.750	57.166667
9	0.775	51.080645
10	0.800	45.375000
11	0.825	40.015152
12	0.850	34.970588
13	0.875	30.214286
14	0.900	25.722222
15	0.925	21.472973
16	0.950	17.447368
17	0.975	13.628205
18	1.000	10.000000
19	1.025	6.548780
20	1.050	3.261905

We now have a dataset consisting of 20 records of two variables. If we are just interested in predicting the value of one variable from another, then two common tools we can employ are: - neural network - linear regression

Let’s take a look at the data:

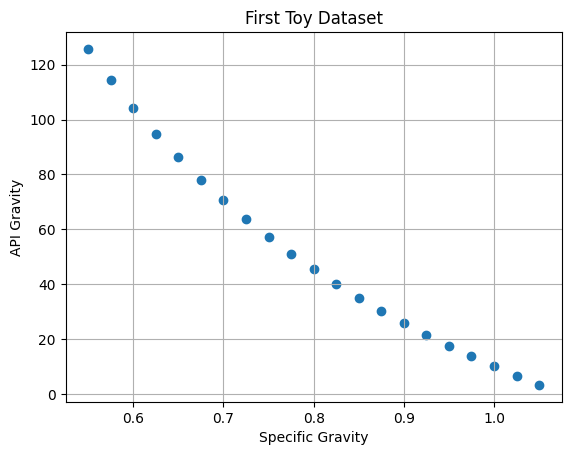

plt.scatter(x,y)
plt.xlabel("Specific Gravity")
plt.ylabel("API Gravity")
plt.title("First Toy Dataset")
plt.grid()
plt.show()

Multiple Regression

When we plot the data, we notice that the relationship is non-linear. One way to handle this is to assume a functional form such as:

\(y=a_{3}x^{3}+a_{2}x^{2}+a_{1}x+a_{0}\)

and use multiple regression to estimate the values of the constants \(a_0...a_3\):

x2=x**2
x3=x**3
dfb=pd.DataFrame(data={'x1':x,'x2':x2,'x3':x3})
mod01=linear_model.LinearRegression()
mod01.fit(dfb,y)
y_fit=mod01.predict(dfb)

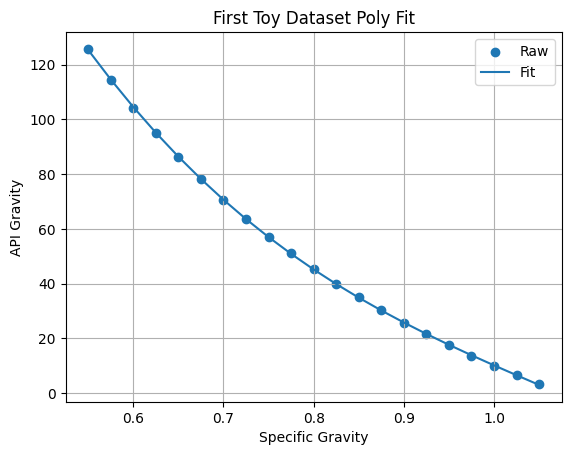

plt.scatter(x,y,label="Raw")
plt.plot(x,y_fit,label="Fit")
plt.xlabel("Specific Gravity")
plt.ylabel("API Gravity")
plt.title("First Toy Dataset Poly Fit")
plt.grid()
plt.legend()
plt.show()

print(f"lin (a1): {mod01.coef_[0]:.2f}")
print(f"sqr (a2): {mod01.coef_[1]:.2f}")
print(f"cub (a3): {mod01.coef_[2]:.2f}")
print(f"int (a0): {mod01.intercept_:.2f}")

lin (a1): -1457.03
sqr (a2): 1241.69
cub (a3): -390.67
int (a0): 616.15

# Quick Test
test=mod01.intercept_+mod01.coef_[0]*0.6+mod01.coef_[1]*0.6*0.6+mod01.coef_[2]*0.6*0.6*0.6
print(test)

104.55253068378275

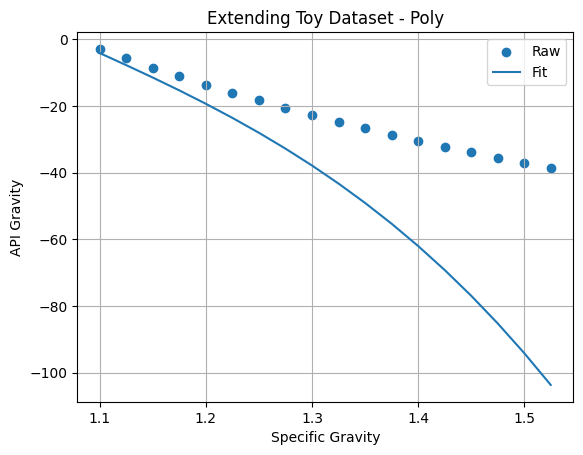

Although this is a very good fit, and therefore we may confidently use this model for predicting values of API gravity for specific gravities in the range \(0.55-1.05\), we may be less comfortable using this model for values outside of this range:

x_big=np.arange(start=1.1,stop=1.55,step=0.025)
y_big=141.5/x_big-131.5
x2_big=x_big**2
x3_big=x_big**3
dfc=pd.DataFrame(data={'x1':x_big,'x2':x2_big,'x3':x3_big})
y_bigfit=mod01.predict(dfc)
plt.scatter(x_big,y_big,label="Raw")
plt.plot(x_big,y_bigfit,label="Fit")
plt.xlabel("Specific Gravity")
plt.ylabel("API Gravity")
plt.title("Extending Toy Dataset - Poly")
plt.grid()
plt.legend()
plt.show()

Neural Network

Let us repeat the exercise with a baby ANN:

mod02=MLPRegressor(hidden_layer_sizes=(7,21,7),
                   random_state=17,
                   verbose=False,
                   learning_rate_init=0.01,
                   tol=1e-3,
                   max_iter=1500)
mod02.fit(dfb,y)

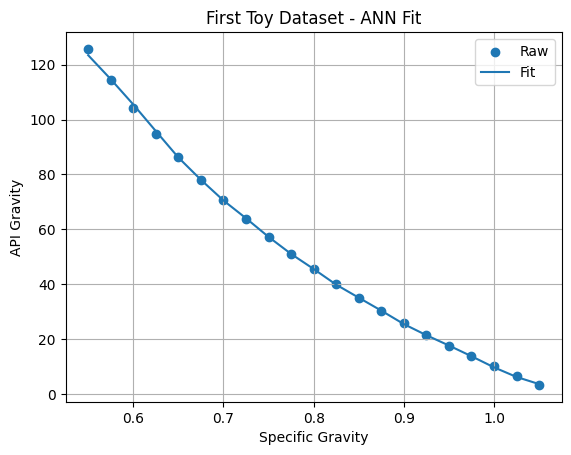

y_fitann=mod02.predict(dfb)
plt.scatter(x,y,label="Raw")
plt.plot(x,y_fitann,label="Fit")
plt.xlabel("Specific Gravity")
plt.ylabel("API Gravity")
plt.title("First Toy Dataset - ANN Fit")
plt.grid()
plt.legend()
plt.show()

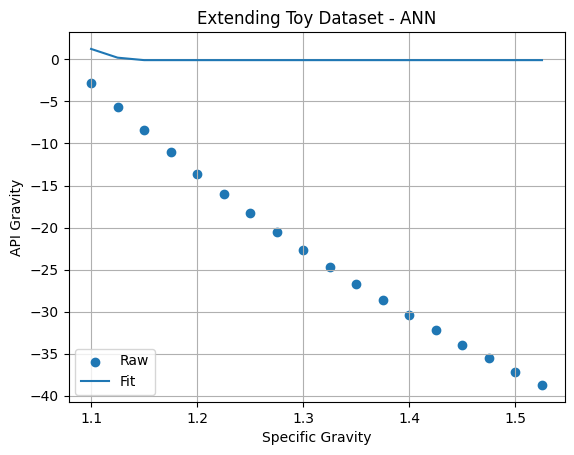

y_bigfitann=mod02.predict(dfc)
plt.scatter(x_big,y_big,label="Raw")
plt.plot(x_big,y_bigfitann,label="Fit")
plt.xlabel("Specific Gravity")
plt.ylabel("API Gravity")
plt.title("Extending Toy Dataset - ANN")
plt.grid()
plt.legend()
plt.show()

Although we can argue that we’ve overtrained the ANN, the point here is that it predicts garbage outside of its training range.

Sparse Regression

One way of to recover the underlying equation is to throw a bunch of possible terms to the regression algorithm:

x1=np.reciprocal(x)
xo=np.log(x)
xe=np.exp(x)
dfd=pd.DataFrame(data={'xo':xo,'xe':xe,'x1':x1,'xp':x,'x2':x2,'x3':x3})
mod03=linear_model.LinearRegression()
mod03.fit(dfd,y)

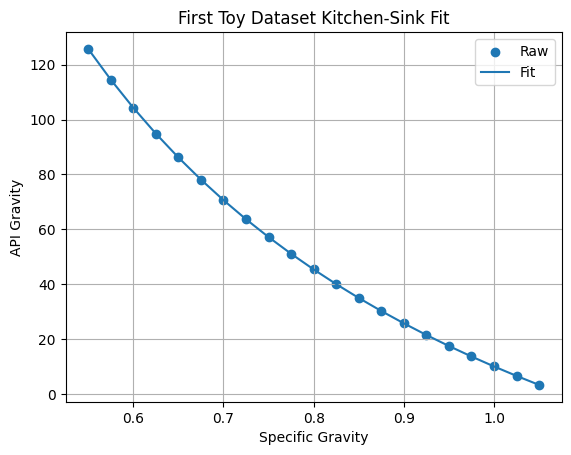

y_fitspa=mod03.predict(dfd)
plt.scatter(x,y,label="Raw")
plt.plot(x,y_fitspa,label="Fit")
plt.xlabel("Specific Gravity")
plt.ylabel("API Gravity")
plt.title("First Toy Dataset Kitchen-Sink Fit")
plt.grid()
plt.legend()
plt.show()

As expected, we have a very good fit, as we have included both the original inverse term \((\frac{1}{x})\) and the terms to make up a cubic equation \((x,x^{2},x^{3})\):

print("log:     ",mod03.coef_[0])
print("exp:     ",mod03.coef_[1])
print("inv:     ",mod03.coef_[2])
print("lin:     ",mod03.coef_[3])
print("sqr:     ",mod03.coef_[4])
print("cub:     ",mod03.coef_[5])
print("int     :",mod03.intercept_)

log:      -3.2805389571047666e-11
exp:      1.7561063714310876e-10
inv:      141.49999999998684
lin:      -2.085140948793196e-10
sqr:      -7.542411140093463e-12
cub:      -7.80140396727802e-11
int     : -131.5000000001701

However, when we look at the coefficients, the inverse term is much larger than all the others. This is the basic idea behind sparse regression. Notice that the coefficient of the inverse term and the intercept are very close to the original values, so that our regressed equation is:

\(y=0.0\cdot log(x)+0.0\cdot e^x+\frac{141.5}{x}+0.0\cdot x +0.0\cdot x^2 +0.0\cdot x^3 -131.5\)

At this point, the million dollar question concerns how this regression would have played out if we neglected to add the inverse term. The polynomial regression earlier provides an answer: The difference in fit quality between mod01 and mod03 is negligble, even though the coefficents for the polynomial terms are dramatically different.

Therefore this version of sparse regression has its limitations.

Tentative Conclusions

Uncovering the fundamental relations underlying data can sometimes be critical for making predictions
The “kitchen-sink” approach can sometimes work suprisingly well at uncovering fundamental relationships

Next Steps

We will move from python to R, to: 1. take a first look at library that uses evolutionary algorithm for symbolic regression.
